视频帧缓存读写管理#

实验介绍#

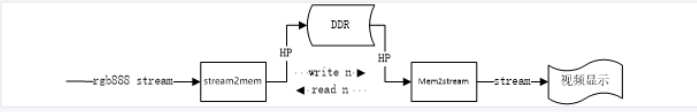

首先,将镜头的图像(转换为RGB888)存储至DDR,然后通过读取DDR来显示视频图像。这里需要解决图像刷新速率不一致时,可能造成的图像割裂状问题。这里共设计了二个HLS模块：stream2mem模块,mem2stream模块,流程图如下。

这里需要解决的一个问题是,若写DDR与读DDR速度不匹配,则会造成图像显示时裂开的现像。解决的方法是：DDR使用三帧缓存,HLS读模块与写模块分别向对方反馈帧索引号。

模块主要代码#

mem2stream 部分

#include "mem2stream.h"

unsigned int cache_len=0;

void readmem(unsigned int *pMemPort, unsigned int base, int row, int rows, unsigned int *to, int line_len)
{
      if(cache_len < (2*line_len))
      {
              if((row+1) == rows)
              {
                      memcpy(to, pMemPort+base, (2*line_len-cache_len)*4);
              }
              else
              {
                      memcpy(to, pMemPort+base+(row+1)*line_len, (2*line_len-cache_len)*4);
              }
              cache_len = line_len;
      }
      else
      {
              cache_len -= line_len;
      }
}

template<int ROWS, int COLS>
void mem2mat(xf::cv::Mat<XF_8UC3,ROWS,COLS,XF_NPPC1> &img, unsigned int *pMemPort,int baseAddr[3],int w, int &r)
{
      XF_TNAME(XF_8UC3,XF_NPPC1) pixel;
      unsigned int cacheBuff[COLS];
      int local_rows = img.rows;
      int local_cols = img.cols;
      int line_len   = img.cols*3/4;
      static int index=2;
      int n = (index<2)?(index+1):0;
      index = (n == w)?index:n;
      r = index;
#pragma HLS STREAM variable=cacheBuff depth=COLS*2
      for(int row=0; row<local_rows; row++)
      {
#pragma HLS loop_tripcount min=12 max=1080
#pragma HLS dataflow
              readmem(pMemPort, baseAddr[index]>>2, row, local_rows, cacheBuff, line_len);
              for(int col=0; col<local_cols; col+=4)
              {
#pragma HLS loop_tripcount min=3 max=480
                      pixel.range(7,0) = cacheBuff[0]>>0;
                      pixel.range(15,8) = cacheBuff[0]>>8;
                      pixel.range(23,16) = cacheBuff[0]>>16;
                      img.write(row*local_cols+col,pixel);
                      pixel.range(7,0) = cacheBuff[0]>>24;
                      pixel.range(15,8) = cacheBuff[1]>>0;
                      pixel.range(23,16) = cacheBuff[1]>>8;
                      img.write(row*local_cols+col+1,pixel);
                      pixel.range(7,0) = cacheBuff[1]>>16;
                      pixel.range(15,8) = cacheBuff[1]>>24;
                      pixel.range(23,16) = cacheBuff[2]>>0;
                      img.write(row*local_cols+col+2,pixel);
                      pixel.range(7,0) = cacheBuff[2]>>8;
                      pixel.range(15,8) = cacheBuff[2]>>16;
                      pixel.range(23,16) = cacheBuff[2]>>24;
                      img.write(row*local_cols+col+3,pixel);
              }
      }
}

void mem2stream(vstream_t &vstream, unsigned int *pMemPort, int rows, int cols,int baseAddr[3],int indexw, int &indexr)
{
#pragma HLS INTERFACE mode=s_axilite port=baseAddr
#pragma HLS INTERFACE axis port=vstream
#pragma HLS INTERFACE m_axi port=pMemPort
#pragma HLS INTERFACE s_axilite port=rows
#pragma HLS INTERFACE s_axilite port=cols
#pragma HLS INTERFACE s_axilite port=return
#pragma HLS INTERFACE ap_none port=indexw
#pragma HLS INTERFACE ap_none port=indexr
      xf::cv::Mat<XF_8UC3,IMG_MAX_ROWS,IMG_MAX_COLS,XF_NPPC1> img;
#pragma HLS STREAM depth=1080 type=fifo variable=img

#pragma HLS dataflow
      mem2mat<IMG_MAX_ROWS,IMG_MAX_COLS>(img, pMemPort,baseAddr,indexw,indexr);
      xf::cv::xfMat2AXIvideo(img, vstream);
}

stream2mem 部分

#include "stream2mem.h"


void writemem(unsigned int *pMemPort, unsigned int to, unsigned int *from, int len)
{
       if(len > 0)
       {
               memcpy(pMemPort+to, from, len);
       }
}

template<int ROWS, int COLS>
void mat2mem(xf::cv::Mat<XF_8UC3,ROWS,COLS,XF_NPPC1> &img, unsigned int *pMemPort,int baseAddr[3],int &w, int r)
{
       XF_TNAME(XF_8UC3,XF_NPPC1) pixelA, pixelB, pixelC, pixelD;
       unsigned int cacheBuff[COLS*3/4];
       int local_rows = img.rows;
       int local_cols = img.cols;
       int line_len   = img.cols*3/4;
       static int index=0;
       int n = (index<2)?(index+1):0;
       index = (n == r)?index:n;
       w = index;
#pragma HLS STREAM variable=cacheBuff depth=COLS/4
       for(int row=0; row<local_rows; row++)
       {
#pragma HLS loop_tripcount min=12 max=1080
#pragma HLS dataflow
               for(int col=0; col<local_cols; col+=4)
               {
#pragma HLS loop_tripcount min=3 max=480
                       pixelA = img.read(row*local_cols+col);
                       pixelB = img.read(row*local_cols+col+1);
                       cacheBuff[0] = (pixelA.range(7,0)<<0)|(pixelA.range(15,8)<<8)|(pixelA.range(23,16)<<16)|(pixelB.range(7,0)<<24);
                       pixelC = img.read(row*local_cols+col+2);
                       cacheBuff[1] = (pixelB.range(15,8)<<0)|(pixelB.range(23,16)<<8)|(pixelC.range(7,0)<<16)|(pixelC.range(15,8)<<24);
                       pixelD = img.read(row*local_cols+col+3);
                       cacheBuff[2] = (pixelC.range(23,16)<<0)|(pixelD.range(7,0)<<8)|(pixelD.range(15,8)<<16)|(pixelD.range(23,16)<<24);
               }
               writemem(pMemPort, (baseAddr[index]>>2)+(row*line_len), cacheBuff, line_len*4);
       }
}

void stream2mem(vstream_t &vstream, unsigned int *pMemPort, int rows, int cols, int baseAddr[3],int &indexw, int indexr)
{
#pragma HLS INTERFACE mode=s_axilite port=baseAddr
#pragma HLS INTERFACE axis port=vstream
#pragma HLS INTERFACE m_axi port=pMemPort
#pragma HLS INTERFACE s_axilite port=rows
#pragma HLS INTERFACE s_axilite port=cols
#pragma HLS INTERFACE ap_ctrl_none port=return
#pragma HLS INTERFACE ap_none port=indexw
#pragma HLS INTERFACE ap_none port=indexr

       xf::cv::Mat<XF_8UC3,IMG_MAX_ROWS,IMG_MAX_COLS,XF_NPPC1> img;
#pragma HLS STREAM depth=1920 type=pipo variable=img

#pragma HLS dataflow
       xf::cv::AXIvideo2xfMat(vstream, img);
       mat2mem(img, pMemPort,baseAddr,indexw, indexr);
}

在这里,我们将数组cacheBuff定义为流类型,方便我们排流水。另外,baseAddr为全局变量,但我们仍然可以将其定义为模块的外部接口,而不必是top函数的参数。内存读取与写入时,调用系统函数memcpy。若直接引用单个数组成员,将严重浪费DDR带宽,不推荐。

工程路径#

名称	路径
vivado 工程	vivado/video_show
HLS工程	hls/mem2stream
HLS工程	hls/stream2mem
BOOT.bin文件	bootimage

实验结果#

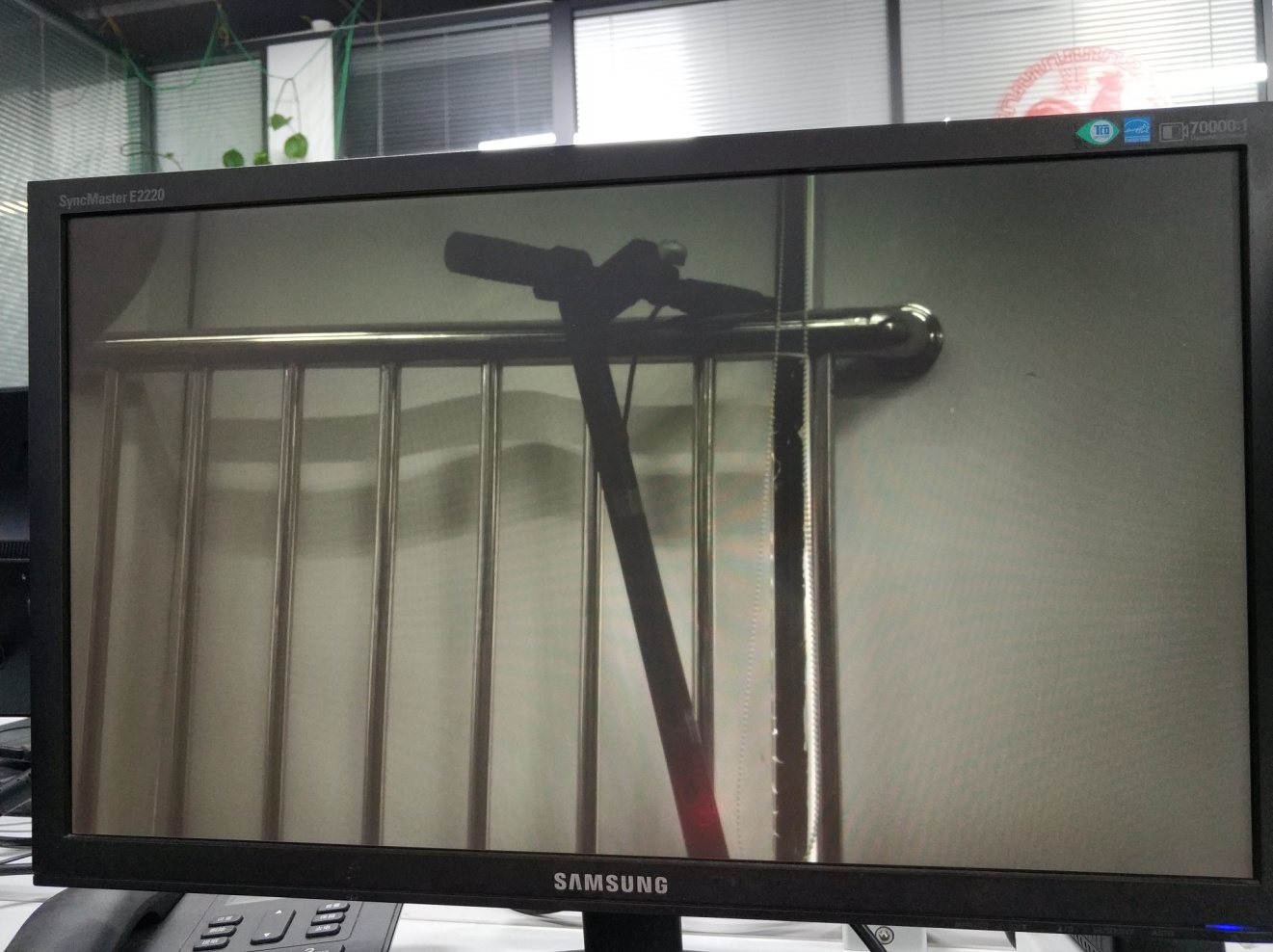

显示双目视频中的一个视频图像。当视频中出现快速移动物体时,不会有割裂状。当前视频在几个分辨率之间不断切换。低分辨率时,仅能显示部分图像。

需要注意,显示输出分辨率在不断变化,所以画面会隔一段时间黑掉,属于正常现象。

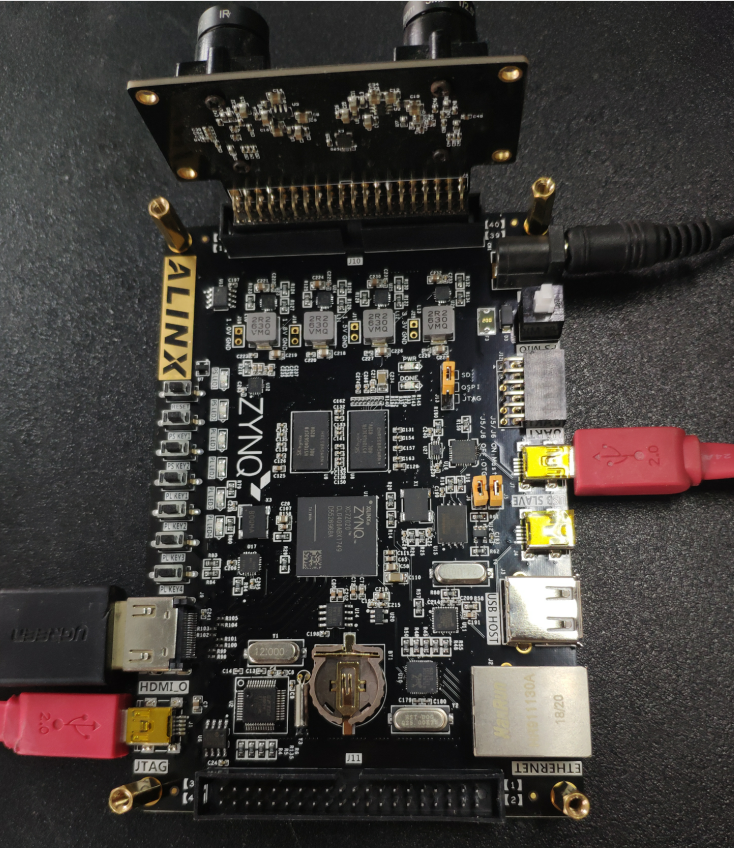

AX7020硬件连接图（J16扩展口）
